elo 1291L 嵌入式触摸显示器

Specifications

• ---

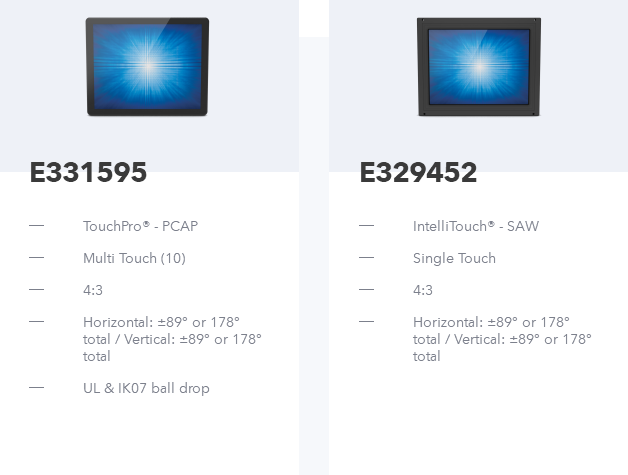

  Part Number(s)

  IntelliTouch (Worldwide) -E329452
  TouchPro PCAP (Worldwide) - E331595

  Enclosure Color

  Black

  Touch Technology & Capacity

  SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
  PCAP (TouchPro® Projected Capacitive) - 10 Touch

  Touch Interface

  TouchPro PCAP - USB 2.0
  IntelliTouch - Dual serial/USB 2.0

  Diagonal Size

  12.1'' diagonal, Active matrix TFT LCD (LED)

  On Screen Display

  Accessible through switches on the unit’s tethered OSD Control box.

  Controls: Menu, Up, Down, Select, Power

  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through

  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

  Lockouts: OSD, Power

  Aspect Ratio

  4:3

  Active Area (mm)

  9.69" x 7.26"/ 246mm x 184.50mm

  Resolution

  800 x 600 at 60 Hz

  Other Supported Resolutions

  640 x 480 60Hz
  800 x 500, 60Hz
  800 x 600 60Hz

  Viewing Angle

  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Number of Colors

  16.2 million

  Brightness (typical)

  LCD panel: 450 nits
  IntelliTouch: 405 nits
  TouchPro PCAP: 405 nits

  Response Time-total (typical)

  25 msec

  Contrast Ratio

  1500:1

  Input Video Format

  HDMI V1.3 Type A receptacle for HDMI input
  Analog VGA on Female DB-15 connector
  DisplayPort V1.1a - Supports later versions of Display Port video input

  Input Video Frequency

  Horizontal: 30 - 38 KHz
  Vertical: 50 - 75 Hz

  Video Interface

  HDMI, VGA & Display Port


  Power Supply

  External DC - Optional power brick (sold separately)

  Input power connector (Monitor)

  Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

  Input Voltage

  12VDC +/- 5%

  Adapter Output Power Connector

  DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

  Power Consumption (Typical)

  Monitor + Adapter at 230V/50Hz
  ON: 12.2 W
  SLEEP: 1.5 W
  OFF: 0.5W

  Dimensions

  Bezel: 11.91" x 9.54" x 1.96" / 302.5mm x 242.2mm x 49.8mm
  Zero-Bezel: 11.90" x 9.53" x 1.77" / 302.5mm x 242mm x 44.9mm

  Shipping Box Dimensions

  15.12" x 12.68" x 14.38" / 384mm x 322mm x 185mm

  Weight (Unpackaged)

  5.8 lbs / 2.65 Kg

  Weight (Packaged)

  10.5 lbs / 4.75 Kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%
  Storage: 10% to 95%

  Sealability

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Warranty

  3-year

  Extended Warranty Options

  1 Year Extended Warranty - Elo P/N: 758588-000
  2 Year Extended Warranty - Elo P/N: 930057-000

  Regulatory approvals and declarations

  Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE

  Mounting Options

  4-hole 75mm VESA mount
  Rear mount through bezel or with included mounting brackets (IntelliTouch models).
  Flush mount with included mounting brackets (TouchPro PCAP models)
  See dimensional drawings for details

  What's in the Box

  HDMI cable
  VGA Cable
  RJ45 OSD Remote
  Touch USB Cable
  User Manual CD
  Quick Install Guide
  For Zero-Bezel Models: Flush Mount Brackets w/Screws
  For Bezeled Models: “L” (Side Mount) Brackets and w/Screws
  EEI Label
  Japan Class-B TM info sheet

  Options / Peripherals / Upgrades

  Elo Remote OSD (RJ45) - Elo P/N: E483757
  Elo Backpack™ - Elo P/N: E611864
  Replacement Cable Kit - Elo P/N: E546861
  Cable Kit DVI-D to HDMI – Elo P/N: E538507
  North America power brick - Elo P/N: E005277
  European & Korea power brick - Elo P/N: E571601
  UK power brick - Elo P/N: E180092
  China power brick - Elo P/N: E558862
  Taiwan power brick - Elo P/N: E818655
  Japan power brick - Elo P/N: E182546
  Argentina power brick - Elo P/N: E887099
  IntelliTouch Stylus Pen - Elo P/N: D82064-000
  Elo 12-inch - L-Bracket - Elo P/N: E549171
  Elo 12-inch Flush mount Bracket - Elo P/N: E548984

  Optional PCAP Stylus Pen

  E066148
