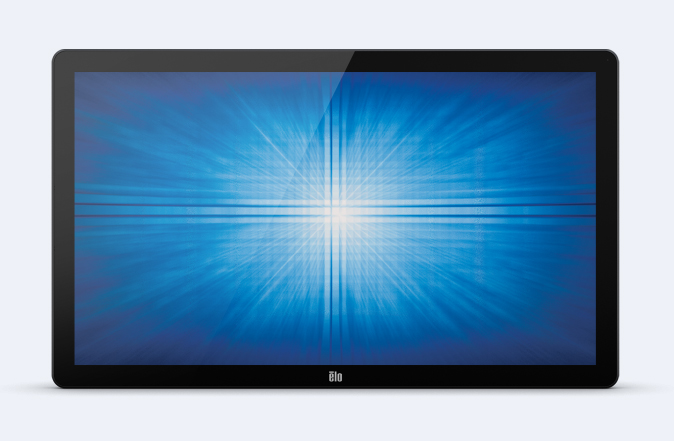

elo 2794L 嵌入式触摸显示器

Specifications

• ---

  Part Number(s)

  IntelliTouch (Worldwide) - E329262
  IntelliTouch Dual Touch (Worldwide) - E329077
  IntelliTouch ZB (Worldwide) - E335488
  TouchPro PCAP (Worldwide) - E331401

  Enclosure Color

  Black

  Touch Technology & Capacity

  SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
  SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
  PCAP (TouchPro® Projected Capacitive) - 10 Touch
  SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch

  Touch Interface

  TouchPro PCAP, IntelliTouch DT - USB
  IntelliTouch, IntelliTouch ZB - Dual serial/USB

  Diagonal Size

  27'' diagonal, Active matrix TFT LCD (LED)

  On Screen Display

  Accessible through switches on the unit’s tethered OSD Control box.

  Controls: Menu, Up, Down, Select, Power

  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode

  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

  Lockouts: OSD, Power

  Aspect Ratio

  16:9

  Active Area (mm)

  23.53" x 13.23" / 597.6mm x 336.15mm

  Resolution

  1920 x 1080

  Other Supported Resolutions

  640 x 480 60Hz
  720 x 400 70Hz
  800 x 500, 60Hz
  800 x 600 56, 60Hz
  1024 x 768 60Hz
  1280 x 800 60Hz
  1280 x 1024 60Hz
  1366 x 768 60Hz, 60Hz RB
  1440 x 900 60Hz, 60Hz RB
  1680 x 1050 60Hz, 60Hz RB
  1920 x 1080 50, 60Hz

  Viewing Angle

  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD panel: 300 nits
  IntelliTouch: 270 nits
  IntelliTouch Dual-Touch: 270 nits
  IntelliTouch ZB: 270 nits
  TouchPro PCAP: 270 nits

  Response Time-total (typical)

  12 msec

  Contrast Ratio

  3000:1

  Input Video Format

  HDMI V1.3 Type A receptacle for HDMI input
  Analog VGA on Female DB-15 connector
  DisplayPort V1.1a - Supports later versions of Display Port video input

  Input Video Frequency

  Horizontal: 30 - 82 KHz
  Vertical: 50 - 75 Hz

  Video Interface

  HDMI, VGA & Display Port

  Power Supply

  External DC - Optional power brick (sold separately)

  Input power connector (Monitor)

  Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

  Input Voltage

  12VDC +/- 5%

  Adapter Output Power Connector

  DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

  Power Consumption (Typical)

  Monitor + Adapter at 230V/50Hz
  ON: 27 W
  SLEEP: 1.5 W
  OFF: 0.5W

  Dimensions

  Bezel: 24.93" x 14.74" x 1.65" / 633.2mm x 374.4mm x 41.8mm
  Zero-Bezel: 25.36" x 15.29" x 1.56" / 644.2mm x 388.4mm x 39.6mm

  Shipping Box Dimensions

  30.79" x 20.87" x 7.87" / 782mm x 530mm x 200mm

  Weight (Unpackaged)

  16.1 lbs / 7.3 Kg

  Weight (Packaged)

  22.49 lbs / 10.2 Kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%
  Storage: 10% to 95%

  Sealability

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Warranty

  3-year

  Extended Warranty Options

  1 Year Extended Warranty - Elo P/N: E188404
  2 Year Extended Warranty - Elo P/N: E572038

  Regulatory approvals and declarations

  Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE

  Mounting Options

  200x100mm VESA mount on rear of unit
  4 Hole mounting interface on all four sides.
  Front mount with optional bezel kit (IntelliTouch/IntelliTouch DT Models see Part Numbers for details - Not for use with TouchPro PCAP/IntelliTouch ZB/Non-Touch Models)
  Flush mount with included brackets (TouchPro PCAP/IntelliTouch ZB/Non-Touch Models see Part Numbers for details)

  What's in the Box

  HDMI cable
  VGA Cable
  RJ45 OSD Remote
  Touch USB Cable
  User Manual CD
  Quick Install Guide
  For Zero-Bezel Models: Flush Mount Brackets w/Screws
  For Bezeled - IntelliTouch/IntelliTouch DT Models: “L” (Side Mount) Brackets and w/Screws
  EEI Label
  Japan Class-B TM info sheet

  Options / Peripherals / Upgrades

  Elo Remote OSD (RJ45) - Elo P/N: E483757
  Replacement Cable Kit - Elo P/N: E546861
  Cable Kit DVI-D to HDMI – Elo P/N: E538507
  North America power brick - Elo P/N: E005277
  European & Korea power brick - Elo P/N: E571601
  UK power brick - Elo P/N: E180092
  China power brick - Elo P/N: E558862
  Taiwan power brick - Elo P/N: E818655
  Japan power brick - Elo P/N: E182546
  Argentina power brick - Elo P/N: E887099
  IntelliTouch Stylus Pen - Elo P/N: D82064-000
  Elo 27-inch Wide L-Bracket - Elo P/N: E646994
  Elo 27-inch Wide Flush-mount Bracket - Elo P/N: E190896
  Elo 27-inch Wide Front-mount Bezel - Elo P/N: E589935
  1.8m DisplayPort to DisplayPort video cable - Elo P/N: E582895
  1.8m DVI-D to DisplayPort video cable - Elo P/N: E583090
  1.8m HDMI to DisplayPort video cable - Elo P/N: E583288

  Optional PCAP Stylus Pen

  E066148
