elo 1715L 桌面触摸显示器

Specifications

• ---

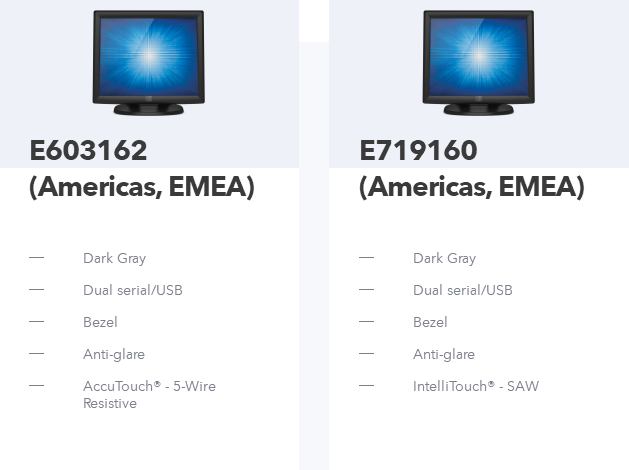

  Part Number(s)

  IntelliTouch (Americas, EMEA) - E719160
  AccuTouch (Americas, EMEA) - E603162

  Enclosure Color

  Dark Gray

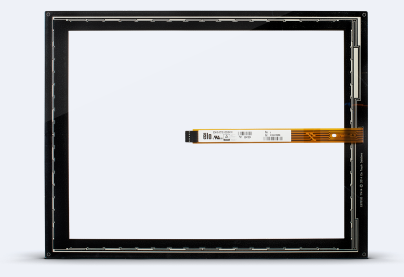

  Touch Technology & Capacity

  5-Wire Resistive (AccuTouch®) - Single-Touch
  SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

  Diagonal Size

  17'' diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  5:4

  Active Area (mm)

  13.3" x 10.6" / 338mm x 270mm

  Resolution

  1280 x 1024

  Other Supported Resolutions

  1280 x 1024 60, 75 Hz
  1280 x 960 60 Hz
  1152 x 864 75 Hz
  1024 x 768 60, 70, 75 Hz
  1024 x 768 65 Hz (Sun)
  832 x 624 75 Hz (Mac)
  800 x 600 56, 60, 72, 75 Hz
  720 x 400 70 Hz
  720 x 350 70 Hz
  640 x 480 60, 72, 75 Hz
  640 x 480 66 Hz (Mac)

  Viewing Angle

  Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD panel: 250 nits
  AccuTouch: 200 nits
  IntelliTouch: 225 nits
  PCAP: 225 nits

  Response Time-total (typical)

  5 msec

  Contrast Ratio

  1000:1

  Input Video Format

  Analog VGA

  Input Video Signal Connector

  Mini D-Sub 15-Pin VGA type

  Power Supply

  Internal AC, Optional external DC (power brick)

  Input Voltage

  AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%

  Input Connector

  AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

  Input Frequency

  Horizontal: 31.5-80 kHz
  Vertical: 56.3-75 Hz

  Power Consumption (Typical)

  AC: 21W
  DC - Monitor only: 17W
  Monitor + AC/DC Adapter: 21W

  On Screen Display

  Controls (side): menu, up, down, select, power

  Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall

  Languages: English, German, Spanish, Japanese, French

  Lockouts: power, user controls

  Monitor Dimensions (with Stand)

  15.4" x 8.0" x 14.4" / 391mm x 203mm x 366mm

  Shipping Box Dimensions

  17.99" x 11.42" x 17.32" / 457mm x 290mm x 440mm

  Weight (with stand)

  15.2 lb / 6.9 kg

  Shipping Weight (With stand)

  21.2 lb / 9.6 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 90%

  Sealability

  Touchscreen sealed to bezel; Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Stand Options

  Tilt, remove

  Mounting Options

  100 mm VESA mount
  Threaded-through mounting holes, under stand

  Other Features

  Security lock receptacle

  Warranty

  3-year

  Extended Warranty Options

  1 Year Extended Warranty - Elo P/N: 758588-000
  2 Year Extended Warranty - Elo P/N: 930057-000
  Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

  Regulatory approvals and declarations

  Worldwide including Asia: UL, cUL, FCC, CE, VCCI, IC, RCM, Argentina S-Mark
  Asia: KC, CCC, BSMI, China RoHS

  What's in the Box

  QIG, User Manual CD, VGA cable, Serial cable (attached if support combo), power cord, USB cable

  Replacement DC Power Supply

  The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E757851, is available at additional cost.

  AC Power Cable

  A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region.

  United States: E042259
  Europe: E690013
  United Kingdom: E235317

  Cable Kit for Replacement Cables

  E378229, available at additional cost.

  Optional IntelliTouch Stylus Pen

  Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Elo P/N: D82064-000, available at additional cost.

  Touch/Video/Audio/Accessory Cables:

  USB touch cable and VGA video cable are included. Cable Kits for replacement cables (Gray - Elo P/N: E378229) (Beige - Elo P/N: E410150)

  Optional Peripherals

  Magnetic Stripe Reader (Dark Gray MSR) – Elo P/N: E963462

  Optional Stand

  E191105
