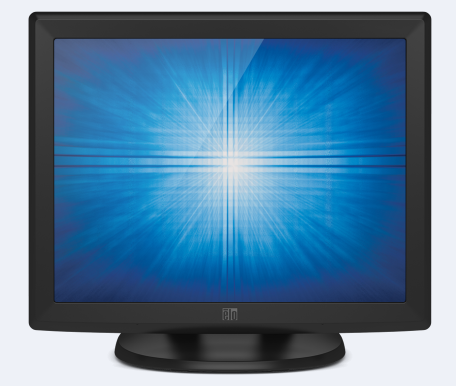

elo 1515L 桌面触摸显示器

 Specifications

• ---

  Part Number(s)

  IntelliTouch (Worldwide) - E700813
  IntelliTouch (EMEA) - E399324

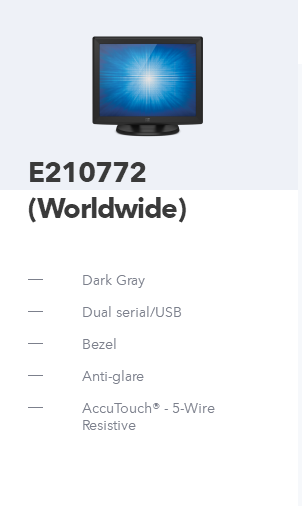

  AccuTouch (Worldwide) - E210772
  AccuTouch (EMEA) - E344320

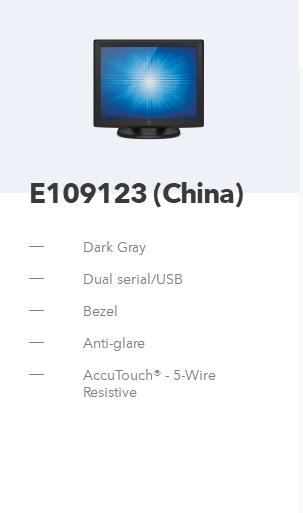

  AccuTouch (China) - E109123

  Enclosure Color

  Dark Gray

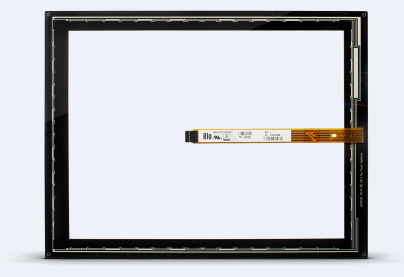

  Touch Technology & Capacity

  5-Wire Resistive (AccuTouch®) - Single-Touch
  SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

  Diagonal Size

  15'' diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  4:3

  Active Area (mm)

  12.0" x 9.0" / 304mm x 228mm

  Resolution

  1024 x 768 @ 60, 70, 75 Hz, 65 Hz (Sun)

  Other Supported Resolutions

  640 x 350 70 Hz
  640 x 480 60, 72, 75 Hz
  640 x 480 66 Hz (Mac)
  720 x 400 at 70 Hz
  800 x 600 at 56, 60, 72 or 75 Hz
  832 x 624 at 75 Hz (Mac)
  1024 x 768 65 Hz (Sun)
  1024 x 768 60, 70, 75 Hz

  Viewing Angle

  Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD panel: 250 nits
  AccuTouch: 200 nits
  IntelliTouch: 225 nits

  Response Time-total (typical)

  8 msec

  Contrast Ratio

  800:1

  Input Video Format

  Analog VGA

  Input Video Signal Connector

  Mini D-Sub 15-Pin VGA type

  Power Supply

  Internal AC, Optional external DC (power brick)

  Input Voltage

  AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%

  Input Connector

  AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

  Input Frequency

  Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz

  Power Consumption (Typical)

  15.5W

  Speakers

  No Speakers

  On Screen Display

  Controls (side): menu, up, down, select, power

  Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall

  Languages: English, German, Spanish, Japanese, French

  Lockouts: power, user controls

  Monitor Dimensions (with Stand)

  13.8" x 12.2" x 6.9" / 350mm x 310mm x 175mm

  Shipping Box Dimensions

  17.52" x 14.96" x 10.24" / 445mm x 380mm x 260mm

  Weight (with stand)

  10.6 lb / 4.8 kg

  Weight (without stand)

  7.3 lb / 3.3 kg

  Shipping Weight (With stand)

  15.4 lb / 7.0 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 90%

  Sealability

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

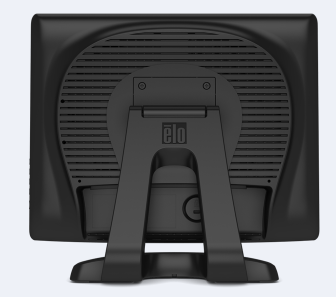

  Mounting Options

  75 mm VESA mount
  Threaded-through mounting holes, under stand

  Other Features

  Security lock receptacle

  Warranty

  3-year

  Extended Warranty Options

  1 Year Extended Warranty - Elo P/N: 758588-000
  2 Year Extended Warranty - Elo P/N: 930057-000
  Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

  Regulatory approvals and declarations

  North America / Worldwide Models: UL, cUL ,FCC, IC,  CE, CB, Semko or Demko, VCCI, RCM

  Asia Models: UL, cUL ,FCC, IC, CE, CB, Semko, VCCI, RCM, BSMI, CCC,  KC, China RoHS

  What's in the Box

  E210772/ E700813:
  1515L monitor
  Quick Install Guide
  User Manual CD
  VGA Cable (DB-15 male to DB-15 male)
  Touch USB Cable (USB Type A plug to USB Type B plug)
  power cable, IEC 60320-C5 to NA plug

  E344320/ E399324:
  1515L monitor
  Quick Install Guide
  User Manual CD
  VGA Cable (DB-15 male to DB-15 male)
  Touch USB Cable (USB Type A plug to USB Type B plug)
  power cable, IEC 60320-C5 to UK/EU plug

  Replacement DC Power Supply

  The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E005277, is available at additional cost.

  AC Power Cable

  A North American power cable (E604766) is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region. AC power cables for power brick are also available at at additional cost:

  United States: E042259
  Europe: E690013
  United Kingdom: E235317

  Cable Kit for Replacement Cables

  Elo P/N: E378229, available at additional cost.

  Optional IntelliTouch Stylus Pen

  Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Part number D82064-000, available at additional cost.

  Touch/Video/Audio/Accessory Cables:

  USB touch cable and VGA video cable are included.

  Optional Peripherals

  Magnetic Stripe Reader (Dark Gray MSR) – Elo P/N: E177037

  Optional Stand

  Part number E245090, available at additional cost.
