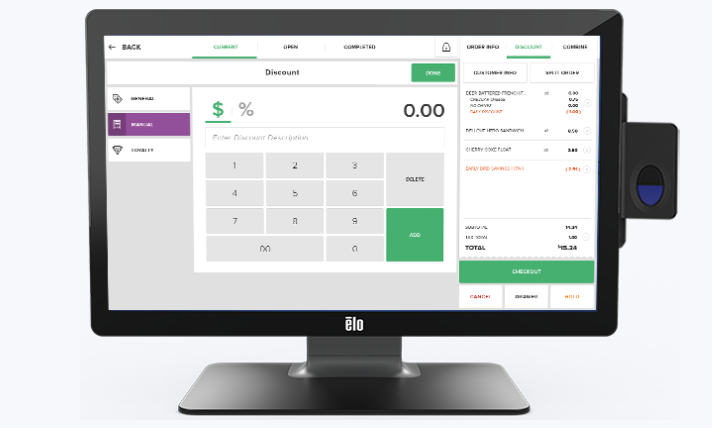

elo2402L宽屏触摸显示器

Specifications

• ---

  Part Number(s)

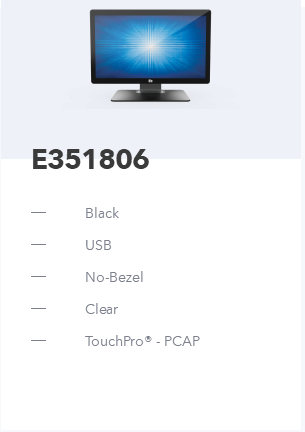

  TouchPro PCAP (Worldwide) - E351806

  Enclosure Color

  Black

  Touch Technology & Capacity

  PCAP (TouchPro® Projected Capacitive) - 10 Touch

  Diagonal Size

  23.8'' diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  16:9

  Active Area (mm)

  20.75" x 11.67" / 527.04 mm x 296.46 mm

  Resolution

  1920 x 1080 @ 50, 60Hz

  Other Supported Resolutions

  640 x 480 60Hz
  640 x 400 70Hz
  720 x 400 70Hz
  800 x 500 60Hz
  800 x 600 56, 60Hz
  1024 x 768 60Hz
  1280 x 800 60Hz
  1280 x 1024 60Hz
  1366 x 768 60Hz, 60Hz RB
  1440 x 900 60Hz, 60Hz RB
  1680 x 1050 60Hz, 60Hz RB
  1920 x 1080 50 60Hz


  Viewing Angle

  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD Panel: 250 nits
  TouchPro PCAP: 240 nits

  Response Time-total (typical)

  15 msec

  Contrast Ratio

  1000:1

  Input Video Format

  VGA (VGA DB-15 Male connecter cable included)
  HDMI (HDMI cable included)

  Input Video Frequency

  Horizontal: 30 – 82KHz
  Vertical: 50 - 75Hz

  Touch Interface

  USB

  Surface Treatment

  Clear

  Input Voltage

  12VDC +/- 5%
  100-240VAC, 50/60Hz

  Input Connector

  Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)

  Power Consumption (Typical)

  Monitor + AC/DC adapter
  ON: 25.5W
  SLEEP: 0.33W
  OFF: 0.27W

  Speakers

  Two x 2W internal speakers

  I/O Ports

  VGA
  HDMI
  Headphone Jack
  DC jack
  USB Type B
  USB 2.0 Type A
  4x Micro USB

  Peripheral Mounting

  4x Micro USB side ports (Top, Bottom, Left, Right)

  On Screen Display

  Accessible through switches along the bottom:

  Controls: Menu, Up, Down, Select

  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF

  Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean

  Lockouts: OSD, Power

  Monitor Dimensions (with Stand)

  17.04" x 22.62" x 9.17" / 432.9 mm x 574.6 mm x 233 mm

  Shipping Box Dimensions

  20.71" x 26.77" x 12.52" / 526 mm x 680 mm x 318 mm

  Weight (with stand)

  19.18 lbs / 8.7 kg

  Weight (without stand)

  11.96 lbs / 5.42 kg

  Weight (Packaged)

  26.46 lbs / 12 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95%

  Sealability

  Touchscreen sealed to bezel; Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Mounting Options

  VESA 4-hole 100mm mounting interface on rear of unit

  Warranty

  3-year

  Extended Warranty Options

  1 Year Extended Warranty - Elo P/N: E188404
  2 Year Extended Warranty - Elo P/N: E572038
  Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

  Regulatory approvals and declarations

  Canada CUL, IC
  China CCC
  Europe CE
  Korea KCC
  Taiwan BSMI
  United States FCC, UL
  Japan VCCI
  International CB
  Australia RCM
  Russia EAC
  Mexico CoC

  Ingress Protection

  IPX1 - Front only

  Power Cables

  North America Power Cable C13 - Elo P/N: E593865
  Australia Power Cable C13 - Elo P/N: E594067
  Europe Power Cable C13 - Elo P/N: E594264
  Korea Power Cable C13 - Elo P/N: E594466
  China Power Cable C13 - Elo P/N: E594670
  Taiwan Power Cable C13 - Elo P/N: E594869
  Japan Power Cable C13 - Elo P/N: E793799

  What's in the Box

  Touchmonitor with stand
  Japanese language regulatory information pamphlet
  Quick Install Guide
  3x Tie wraps
  VGA cable
  HDMI cable
  Touch USB cable
  Audio cable
  Power brick
  NA Power cable
  EU Power cable
  EEI Label

  Replacement DC Power Supply

  Power Brick 50W - E593661

  Optional Peripherals

  Magnetic Stripe Reader (MSR) – Elo P/N: E001002
  Elo Backpack™ - Elo P/N: E611864
  NFC/RFID Reader – Elo P/N: E001004
  Fingerprint Reader (FPR) – Elo P/N: E001001
  Barcode Reader (BCR) – Elo P/N: E093433
  Customer Display (2x20 VFD) – Elo P/N: E001003
  2D Barcode Scanner – Elo P/N: E926356
  PCAP Stylus Pen - Elo P/N: E066148

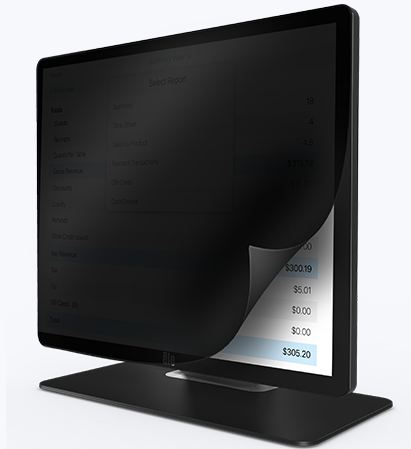

  Privacy Screen 24-inch- Elo P/N: E352977
  Elo Monitor Handles – 1 Set - Elo P/N: E352196

  Stands, Mounts & Kits

  Wall Mount Kit – Elo P/N: E143088
  Shelf Mount Bracket - Elo P/N: E043382
  Pole Mount Bracket - Elo p/n: E045151
  1.8m Cable Kit - Elo p/n: E210789
  3m Cable Kit - Elo p/n: E210606
  Elo Stand 2402/3-2702/3 - Black - Elo P/N: E509844
