elo2202L宽屏触摸显示器

Specifications

• ---

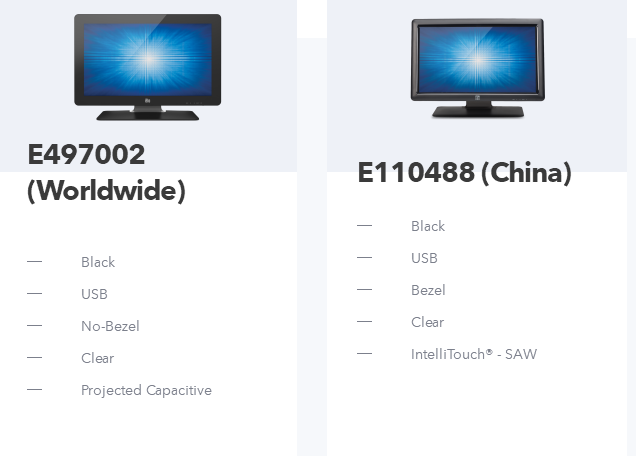

  Part Number(s)

  PCAP (Worldwide) - E497002
  IntelliTouch ZB (Worldwide) - E382790
  IntelliTouch Dual-Touch (Worldwide) - E107766
  IntelliTouch Dual-Touch (China) - E110488   With Stand - E351600
  Without Stand - E126096

  Enclosure Color

  Black

  Touch Technology & Capacity

  SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
  PCAP (TouchPro® Projected Capacitive) - 10 Touch
  SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch

  Diagonal Size

  22'' diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  16:9

  Active Area (mm)

  18.8" x 10.6" / 476mm x 268mm

  Resolution

  1920 x 1080 @ 50, 60Hz

  Other Supported Resolutions

  640 x 480 60Hz
  720 x 576 50Hz
  800 x 600 56, 60Hz
  1024 x 768 60Hz
  1280 x 720 50, 60Hz
  1280 x 960 60Hz
  1280 x 1024 60Hz
  1366 x 768 60Hz
  1440 x 900 60Hz
  1680 x 1050 60Hz
  1920 x 1080 50, 60Hz

  Viewing Angle

  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD Panel: 250 nits
  IntelliTouch DT: 225 nits
  IntelliTouch ZB: 225 nits
  PCAP: 225 nits

  Response Time-total (typical)

  14 msec

  Contrast Ratio

  1000:1

  Input Video Format

  Analog VGA on Female DB-15 connector; Digital DVI on Female DVI-D connector

  Input Video Frequency

  Horizontal: 32 - 80 KHz
  Vertical: 50 - 75 Hz

  Audio Input Connector

  One 3.5mm TRS jack

  Headphone Output Connector

  One 3.5mm TRS jack

  Power Supply

  DC (external power adapter included with unit)

  Input Voltage

  12VDC +/- 5%

  Input Connector

  Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)

  Adapter Input Connector

  IEC 60320 C6

  Adapter Input Voltage Range

  100-240 VAC, 50 - 60 Hz

  Power Consumption (Typical)

  ON (monitor + adapter): 26.04W
  SLEEP (monitor + adapter): 0.83W
  OFF (monitor + adapter at): 0.67W

  Speakers

  Two x 2W internal speakers

  On Screen Display

  Controls: Menu, Up, Down, Select

  Settings: Brightness, Contrast, Clock, Phase, H-position, Vposition, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults, Video Source

  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

  Lockouts: OSD, Power

  Monitor Dimensions (with Stand)

  21.7" x 15.4" x 7.6" / 551mm x 392mm x 193mm

  Shipping Box Dimensions

  20.5" x 27.2" x 11.0" / 520mm x 690mm x 280mm

  Weight (Unpackaged)

  16.5 lb / 7.5 kg

  Weight (Packaged)

  27.6 lb / 12.5 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%
  Storage: 10% to 95%

  Sealability

  Touchscreen sealed to bezel; Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

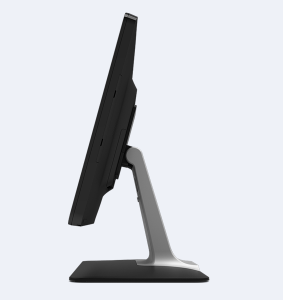

  Stand Options

  Tiltable and removable

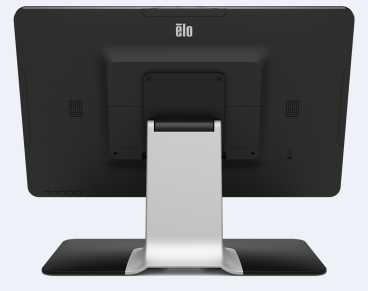

  Mounting Options

  VESA 4-hole 100mm mounting interface on rear of unit
  4-hole 200x100mm threaded mounting on bottom of stand

  Other Features

  Security lock receptacle

  Warranty

  3-year

  Extended Warranty Options

  1 Year Extended Warranty - Elo P/N: 758588-000
  2 Year Extended Warranty - Elo P/N: 930057-000
  Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

  Regulatory approvals and declarations

  Australia RCM
  Canada cUL, IC
  China CCC
  Europe CE
  Japan VCCI
  Korea KCC, e-Standby
  Mexico CoC
  Russia EAC
  Taiwan BSMI
  United States UL, FCC
  International CB
  RoHS, China RoHS, WEEE, IMERC

  What's in the Box

  For P/N: E382790 , E107766 , E497002 - Touchmonitor, TouchTools CD, Quick Install Guide, JP regulatory pamphlet, Cables – DVI, VGA, USB, Audio, AC-DC power adapter, NA and EU power cables.

  For P/N: E110488 - Touchmonitor, TouchTools CD, Quick Install Guide, JP regulatory pamphlet, Cables –DVI, VGA, USB, Audio, AC-DC power adapter, CCC power cable.

  Replacement DC Power Supply

  The monitor may be powered with DC voltage. An optional 12V DC power brick is available at additional cost.

  Replacement power brick kits - 50W power adapter + regional power cable-C13 type
  United States: E005277
  Europe & Korea: E571601
  United Kingdom: E180092
  China: E558862
  Taiwan: E818655
  Japan: E182546
  Argentina: E887099

  Cable Kit for Replacement Cables

  Elo - P/N: E378229 (gray) available at additional cost.

  Optional PCAP Stylus Pen

  E066148

  Optional IntelliTouch Stylus Pen

  Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo P/N: D82064-000, available at additional cost.

  Touch/Video/Audio/Accessory Cables:

  Detachable touch, audio, power (for all regions) and video cables are included.

  Optional Peripherals

  Magnetic Stripe Reader (MSR) – Elo P/N: E757859

  Optional Stand

  Replacement Stand (Dark gray) Elo P/N: E758776, available at additional cost.

•
