elo 1509L 宽屏触摸显示器

Specifications

• ---

  Part Number(s)

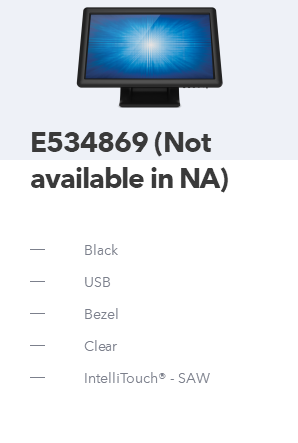

  IntelliTouch (Not Sold in North America) - E534869

  Enclosure Color

  Black

  Touch Technology & Capacity

  SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

  Diagonal Size

  15.6'' diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  16:9

  Active Area (mm)

  13.4" x 7.6" / 344mm x 194mm

  Resolution

  1366 x 768

  Other Supported Resolutions

  640 x 480 at 60Hz
  800 x 600 at 60Hz
  1024 x 768 at 60Hz
  1280 x 800 at 60, 60RB Hz
  1280 x 960 at 60Hz
  1280 x 1024 at 60Hz
  1360 x 768 at 60Hz
  1366 x 768 at 60, 60RB Hz

  Viewing Angle

  Horizontal: ±45° / Vertical: +15°, -35°

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD Panel: 220
  IntelliTouch: 180 nits

  Response Time-total (typical)

  8 msec

  Contrast Ratio

  400:1

  Input Video Format

  Analog VGA on Female DB-15 connector

  Input Video Signal Connector

  Mini D-sub 15-pin VGA type

  Input Video Frequency

  Horizontal: 30 - 80 KHz
  Vertical: 60 Hz

  Touch Interface

  USB

  Power Supply

  AC-DC power adapter

  Input Voltage

  12VDC +/- 5%; 100-240VAC, 50/60Hz

  Input Connector

  Coaxial power jack (2mm pin outer diameter, 6.4mm barrel inner diameter)

  Adapter Input Connector

  IEC 60320 C14

  Adapter Input Voltage Range

  100-240VAC, 50/60Hz

  Power Consumption (Typical)

  Monitor: 10W
  Monitor +AC/DC adapter @ 230V/50 Hz, no audio: 14.4W
  SLEEP: 2.0W
  OFF: 1.0W

  On Screen Display

  Controls: menu, up, down, select

  Settings: Brightness, contrast, clock, phase, H-position, V-position, auto-adjust, sharpness, color temperature, OSD timeout, OSD language, recall defaults

  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

  Lockouts: OSD, power

  Accessible through switches along the bottom.

  Monitor Dimensions (with Stand)

  15.4" x 9.5" x 11.4" / 392.2 mm x 241.5 mm x 288.3 mm

  Shipping Box Dimensions

  17.9" x 13.9" x 8.1" / 455mm x 355mm x 205mm

  Weight (Unpackaged)

  5.2 lbs / 2.4 kg

  Weight (Packaged)

  8.6 lbs / 3.9 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95%

  Sealability

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Mounting Options

  75 mm, 4-hole VESA mount on rear of unit

  Warranty

  2-year

  Extended Warranty Options

  1 Year Extended Warranty - Elo P/N: 758588-000
  2 Year Extended Warranty - Elo P/N: 930057-000

  Regulatory approvals and declarations

  C-Tick, cUL, IC, CCC, CE, VCCI, KEBS, KCC, CoC, SONCAP, GOST, SASO, SABS, BSMI, UL, FCC, CB
  Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CE

  What's in the Box

  1509L Touchscreen Monitor
  VGA Cable
  USB Cable
  Power brick
  User Manual CD
  Quick Install Guide

  Replacement DC Power Supply

  UK: E529990
  Taiwan: E945226
  Japan: E415191
  India: E249003
  Argentina E870572

  Optional IntelliTouch Stylus Pen

  Elo P/N: D82064-000

  Optional Peripherals

  Magnetic Stripe Reader (MSR) – Elo P/N: E757859
