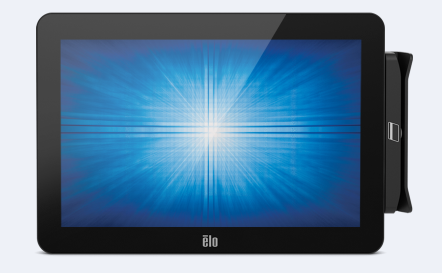

elo 1002L 宽屏触摸显示器

Specifications

• ---

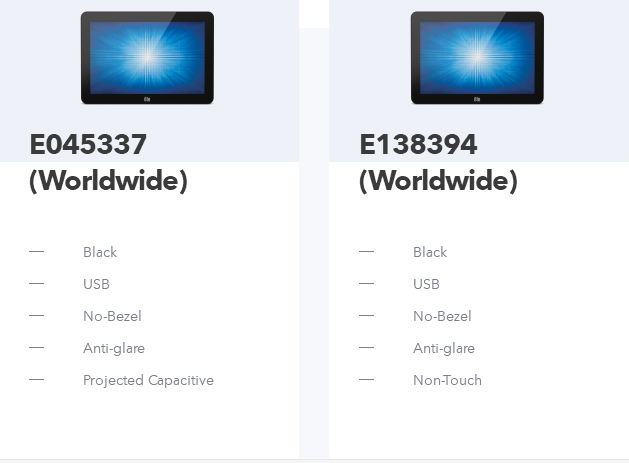

  Part Number(s)

  PCAP (Worldwide) - E045337
  Non-Touch (Worldwide) - E138394

  Enclosure Color

  Black

  Touch Technology & Capacity

  Non-Touch
  PCAP (Projected Capacitive) - 10 Touch

  Diagonal Size

  10.1'' diagonal, Active matrix TFT LCD (LED)

  Monitor Thickness

  1.14" / 29mm panel depth

  Aspect Ratio

  16:10

  Active Area (mm)

  8.57" x 5.37" / 218mm x 136.6mm

  Resolution

  1280 x 800

  Other Supported Resolutions

  640 x 480 @ 60Hz
  800 x 600 @ 60Hz
  1024 x 768 @ 60Hz
  1280 x 800 @ 60Hz
  1920 x 1080 @ 60Hz
  1920 x 1200 @ 60Hz

  Viewing Angle

  Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

  Number of Colors

  262,000

  Brightness (typical)

  LCD panel: 350 nits
  PCAP (DC Power): 315 nits
  PCAP (USB Power): 176 nits

  Response Time-total (typical)

  25 msec

  Contrast Ratio

  700:1

  Input Video Format

  Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included), HDCP supported

  Input Video Frequency

  Horizontal: 31.5 - 60 KHz
  Vertical: 60 Hz

  Touch Interface

  USB

  Power Supply

  External DC (Power Brick)

  Input Voltage

  12VDC +/- 5%; 100-240VAC, 50/60Hz

  Input Connector

  Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)

  Power Consumption (Typical)

  Monitor + AC/DC adapter
  ON: 5.6W
  SLEEP: 0.4W
  OFF: 0.2W
  Max Power Consumption with USB Power: 7W

  Speakers

  2 x 2W internal speakers

  On Screen Display

  Accessible through switches along the bottom:

  Controls: Menu, Up, Down, Select

  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select

  Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

  Lockouts: OSD, Power

  Monitor Dimensions (without Stand)

  10.02" x 6.98" x 1.14" / 254.6mm x 177.3mm x 29mm

  Shipping Box Dimensions

  12.2" x 5.47" x 9.37" / 310mm x 139mm x 238mm

  Weight (Unpackaged)

  1.75 lbs / 0.79 kg

  Weight (Packaged)

  4.5 lbs / 2 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95%

  Sealability

  Touchscreen sealed to bezel; Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Mounting Options

  VESA 4-hole 75mm mounting interface on rear of unit

  Other Features

  Optional wall mount kit available tabletop, shelf- and pole mounts available, see Accessories tab
  2 x 2W internal speakers
  Kensington lock slot

  Warranty

  3-year

  Extended Warranty Options

  1 Year Extended Warranty - Elo P/N: 758588-000
  2 Year Extended Warranty - Elo P/N: 930057-000
  Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

  Regulatory approvals and declarations

  UL, cUL, FCC, IC, CE, VCCI, CCC, BSMI

  What's in the Box

  QIG, Japan Class-B TM info, User Manual CD, 40W Power Brick with Clipped-in plugs, Mini-VGA to VGA cable (mini-VGA to DE-15 male), USB cable (USB Type A plug to USB Type B plug), HDMI cable, Audio cable, 2 cable clamps, 2 tie wraps

  Optional PCAP Stylus Pen

  E066148

  Optional Peripherals

  Magnetic Stripe Reader (MSR) – Elo P/N: E001002
  Elo Backpack™ - Elo P/N: E611864
  NFC/RFID Reader – Elo P/N: E001004
  Barcode Reader (BCR) – Elo P/N: E093433
  Customer Display (2x20 VFD) – Elo P/N: E001003
  2D Barcode Scanner – Elo P/N: E926356
  EMV Cradle for Ingenico ICMP (I-Series & M-Series) - Elo P/N: E200465
  EMV Cradle for Verifone E355 (I-Series & M-Series) - Elo P/N: E201088

  Stands, Mounts & Kits

  Wall Mount Kit – Elo P/N: E143088
  Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
  Shelf Mount Bracket - Elo P/N: E043382
  Floor Stand for 10/15/22” I-Series - Elo P/N: E048069

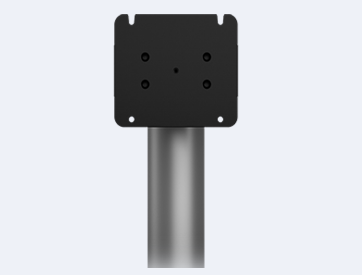

  Pole Mount – 6 inch - Elo p/n: E047458
  Pole Mount – 12 inch - Elo p/n: E047663
  Pole Mount – 18 inch - Elo p/n: E047864
  Pole Mount Bracket - Elo p/n: E045151
  1.8m Cable Kit - Elo p/n: E210789
  3m Cable Kit - Elo p/n: E210606
  Power Brick Kit – 1.8m Power Cable - Elo p/n: E211174
  Power Brick Kit – 3m Power Cable - Elo p/n: E210973
  1.8m Power USB Cable - Elo p/n: E457742
  3m Power USB Cable - Elo p/n: E209775
  mPOS Printer Stand (Black) - Elo P/N: E353950
  mPOS Printer Stand (White) - Elo P/N: E353758
