elo 1502L 宽屏触摸显示器

Specifications

• ---

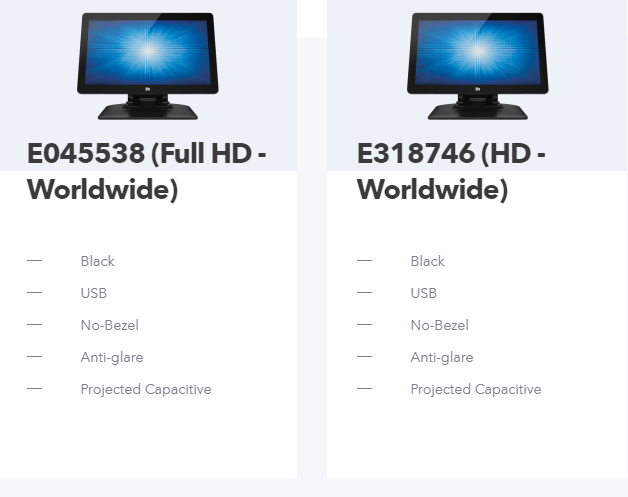

  Part Number(s)

  PCAP FHD USB-C With Stand (Worldwide) - E155645
  PCAP FHD USB-C Without Stand (Worldwide) - E125496
  PCAP HD With Stand (Worldwide) - E318746

  Enclosure Color

  Black

  Touch Technology & Capacity

  PCAP (Projected Capacitive) - 10 Touch

  Diagonal Size

  15.6'' diagonal, Active matrix TFT LCD (LED)

  Monitor Thickness

  1.29" / 33mm panel depth

  Aspect Ratio

  16:9

  Active Area (mm)

  13.59" x 7.66" / 345.2mm x 194.6mm

  Resolution

  Full HD model: 1920 x 1080
  HD model: 1366 x 768

  Other Supported Resolutions

  Full HD model: 640 x 480 @ 60Hz; 640 x 400 @ 70Hz; 720 x 576 @ 50Hz; 720 x 400 @ 70Hz; 800 x 600 @ 56, 60Hz; 1024 x 768 @ 60Hz; 1280 x 720 @ 50, 60Hz; 1280 x 800 @ 60, 60RB Hz; 1280 x 960 @ 60Hz;1280 x 1024 @ 60Hz; 1360 x 768 @ 60Hz; 1366 x 768 @ 60Hz, 60Hz RB; 1440 x 900 @ 60Hz, 60Hz RB; 1680 x 1050 @ 60Hz, 60Hz RB; 1920 x 1080 @ 50, 60Hz

  HD model: 640 x 480 @ 60Hz; 640 x 400 @ 70Hz; 720 x 576 @ 50Hz; 720 x 400 @ 70Hz; 800 x 600 @ 56, 60Hz; 1024 x 768 @ 60Hz; 1280 x 720 @ 50, 60Hz; 1280 x 800 @ 60, 60RB Hz; 1280 x 960 @ 60Hz; 1280 x 1024 @ 60Hz; 1360 x 768 @ 60Hz; 1366 x 768 @ 60Hz, 60Hz RB

  Viewing Angle

  Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

  HD Model Viewing Angle

  HD model only: Horizontal: 90° total; Vertical: 65° total

  Number of Colors

  262,000

  Brightness (typical)

  Full HD model
  LCD Panel: 300 nits
  PCAP: 270 nits
  HD model
  LCD Panel: 220 nits
  PCAP: 187 nits

  Response Time-total (typical)

  Full HD model: 35 ms
  HD model: 10 ms

  Contrast Ratio

  700:1

  HD Model Contrast Ratio

  600:1

  Touch Interface

  USB

  On Screen Display

  Accessible through switches along the bottom:

  Controls: Menu, Up, Down, Select

  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select

  Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

  Lockouts: OSD, Power

  Speakers

  Two 2W internal speakers

  Input Video Format

  Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included), HDCP supported

  Input Video Frequency

  Horizontal: 31.5 - 60 KHz
  Vertical: 60 Hz

  Power Consumption (Typical)

  Monitor +AC/DC adapter
  Full HD Model - ON: 8.7W
  HD Model - ON: 10.2W; SLEEP: 0.4W; OFF: 0.2W

  Input Voltage

  12VDC +/- 5%; 100-240VAC, 50/60Hz

  Input Connector

  Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)

  Monitor Dimensions (without Stand)

  15.24" x 9.62" x 1.29" / 387mm x 244.4mm x 32.9mm

  Shipping Box Dimensions

  17.99" x 13.66" x 7.13" / 457mm x 347mm x 181mm

  Weight (with stand)

  6.72 lbs / 3.05 kg

  Weight (without stand)

  6.64 lbs / 3.0 kg

  Weight (Packaged)

  11.2 lbs / 5.08 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95%

  Sealability

  Touchscreen sealed to bezel; Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Mounting Options

  VESA 4-hole 75mm and 100mm mounting interface on rear of unit

  Other Features

  Optional wall-, pole-, shelf mount kits available , see Accessories tab
  2 x 2W internal speakers
  Kensington lock slot

  Warranty

  3-year

  Extended Warranty Options

  4 year warranty coverage - Elo P/N: E898247
  5 year warranty coverage - Elo P/N: E898449
  3 year warranty coverage + AUR - Elo P/N: E898648
  4 year warranty coverage + AUR - Elo P/N: E894921
  5 year warranty coverage + AUR - Elo P/N: E895125

  Regulatory approvals and declarations

  UL, cUL, FCC, IC, CE, VCCI, CCC

  What's in the Box

  QIG, Japan Class-B TM info sheet, User Manual CD, 40W Power Brick with Clipped-in plugs, Mini-VGA to VGA cable (mini-VGA to DE-15 male), USB cable (USB Type A plug to USB Type B plug), HDMI cable, Audio cable, 2 cable clamps, 2 tie wraps

  Cable Kit for Replacement Cables

  Includes HDMI, mini-VGA to VGA, USB and audio. Part number E210789 for 1.8m cables. Part number E210606 for 3m cables.

  Optional Power Supply Brick

  Includes clipped-in plugs for US/Europe/UK. Part number E211174 for 1.8m power cable. Part number E210973 for 3m power cable.

  Optional PCAP Stylus Pen

  E066148

  Touch/Video/Audio/Accessory Cables:

  Detachable touch and video cables are included.

  Optional Peripherals

  Magnetic Stripe Reader (MSR) – Elo P/N: E001002
  NFC/RFID Reader – Elo P/N: E001004
  Barcode Reader (BCR) – Elo P/N: E093433
  Customer Display (2x20 VFD) – Elo P/N: E001003
  2D Barcode Scanner – Elo P/N: E926356
  EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
  EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088
  EMV Cradle for MagTek eDynamo - Elo P/N: E375343
  EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
  EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930

  Stands, Mounts & Kits

  Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
  Elo Backpack® - Elo P/N: E611864
  Elo Backpack® 3.0 - Elo P/N: E901355
  Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
  Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
  Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
  Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
  Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
  Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
  Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
  1.8m Cable Kit - Elo P/N: E210789
  3m Cable Kit - Elo P/N: E210606
  Power Brick Kit – 1.8m Power Cable - Elo P/N: E211174
  Power Brick Kit – 3m Power Cable - Elo P/N: E210973
  1.8m Power USB Cable - Elo P/N: E457742
  3m Power USB Cable - Elo P/N: E209775
  Wallaby™ POS Stand (Black) - Elo P/N: E949536
  Wallaby™ POS Stand (White) - Elo P/N: E353758
  Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
  Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
