elo 2403医疗级触摸显示器

Specifications

• ---

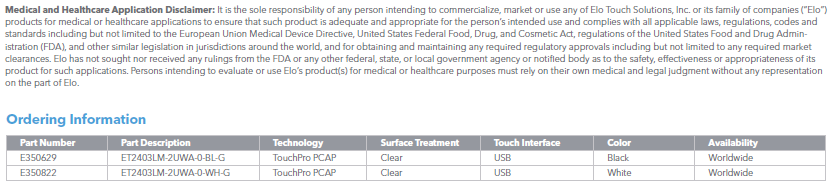

  Part Number(s)

  TouchPro PCAP Black (Worldwide) - E350629
  TouchPro PCAP White (Worldwide) - E350822

  Enclosure Color

  White or Black

  Touch Technology & Capacity

  PCAP (TouchPro® Projected Capacitive) - 10 Touch

  Diagonal Size

  23.8'' diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  16:9

  Active Area (mm)

  20.75" x 11.67" / 527.04 mm x 296.46 mm

  Resolution

  1920 x 1080 @ 50, 60Hz

  Other Supported Resolutions

  640 x 480 60Hz
  640 x 400 70Hz
  720 x 400 70Hz
  800 x 500 60Hz
  800 x 600 56Hz, 60Hz
  1024 x 768 60Hz
  1280 x 720 @ 58Hz, 60Hz
  1280 x 800 60Hz
  1280 x 1024 60Hz
  1366 x 768 60Hz, 60Hz RB
  1440 x 900 60Hz, 60Hz RB
  1680 x 1050 60Hz, 60Hz RB

  Viewing Angle

  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD Panel: 250 nits
  TouchPro PCAP: 240 nits

  Response Time-total (typical)

  15 msec

  Contrast Ratio

  1000:1

  Touch Interface

  USB

  Surface Treatment

  Clear

  On Screen Display

  Accessible through switches along the bottom:

  Controls: Menu, Up, Down, Select

  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF

  Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean

  Lockouts: OSD, Power

  I/O Ports

  VGA
  HDMI
  Combo Jack
  DC jack
  USB Type B
  USB 2.0 Type A
  4x Micro USB

  Speakers

  Two x 2W internal speakers

  Input Video Format

  VGA (VGA DB-15 Male connecter cable included)
  HDMI (HDMI cable included)

  Input Video Frequency

  Horizontal: 30 – 82KHz
  Vertical: 50 - 75Hz

  Power Consumption (Typical)

  Monitor + AC/DC adapter
  ON: 25.5W
  SLEEP: 0.33W
  OFF: 0.27W

  Input Voltage

  12VDC +/- 5%
  100-240VAC, 50/60Hz

  Input Connector

  Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)

  Peripheral Mounting

  4x Micro USB side ports (Top, Bottom, Left, Right)

  Monitor Dimensions (with Stand)

  17.04" x 22.62" x 9.17" / 432.9 mm x 574.6 mm x 233 mm

  Shipping Box Dimensions

  20.71" x 26.77" x 12.52" / 526 mm x 680 mm x 318 mm

  Weight (with stand)

  19.18 lbs / 8.7 kg

  Weight (without stand)

  11.96 lbs / 5.42 kg

  Weight (Packaged)

  26.46 lbs / 12 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95%

  Sealability

  Touchscreen sealed to bezel; Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Mounting Options

  VESA 4-hole 100mm mounting interface on rear of unit

  Warranty

  3-year

  Extended Warranty Options

  4 year warranty coverage - Elo P/N: E898247
  5 year warranty coverage - Elo P/N: E898449
  3 year warranty coverage + AUR - Elo P/N: E898648
  4 year warranty coverage + AUR - Elo P/N: E894921
  5 year warranty coverage + AUR - Elo P/N: E895125

  Regulatory approvals and declarations

  Canada CUL, IC
  China CCC
  Europe CE
  Korea KCC
  Taiwan BSMI
  United States FCC, UL
  Japan VCCI
  International CB
  Australia RCM
  Russia EAC
  Mexico CoC

  UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1
  cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1
  CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1)
  CE: IEC 60601-1-2:2014 (Ed. 4)
  Risk Management: ISO 14971:2007 + EN ISO 14971:2012
  Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1)

  Ingress Protection

  IP54 entire enclosure

  Power Cables

  North America Power Cable C13 - Elo P/N: E593865
  Australia Power Cable C13 - Elo P/N: E594067
  Europe Power Cable C13 - Elo P/N: E594264
  Korea Power Cable C13 - Elo P/N: E594466
  China Power Cable C13 - Elo P/N: E594670
  Taiwan Power Cable C13 - Elo P/N: E594869
  Japan Power Cable C13 - Elo P/N: E793799

  What's in the Box

  Touchmonitor with stand
  Japanese language regulatory information pamphlet
  Quick Install Guide
  3x Tie wraps
  VGA cable
  HDMI cable
  Touch USB cable
  Audio cable
  Power brick
  NA Power cable
  EU Power cable
  EEI Label

  Replacement DC Power Supply

  Power Brick 65W - E593253

  Optional Peripherals

  Magnetic Stripe Reader (MSR) – Elo P/N: E001002
  Magnetic Stripe Reader (White MSR) – Elo P/N: E352392
  PCAP Stylus Pen - Elo P/N: E066148
  Privacy Screen 24-inch- Elo P/N: E352977
  Elo Monitor Handles – 1 Set - Elo P/N: E352196

  Stands, Mounts & Kits

  Wall Mount Kit – Elo P/N: E143088
  Shelf Mount Bracket - Elo P/N: E043382
  Pole Mount Bracket - Elo P/N: E045151
  1.8m Cable Kit - Elo P/N: E210789
  3m Cable Kit - Elo P/N: E210606
  Elo Stand 2402/3-2702/3 - Black - Elo P/N: E509844
  Elo Stand 2402/3-2702/3 - White - Elo P/N: E510042
