elo 5543L 触摸显示器

Specifications

• ---

  Part Number(s)

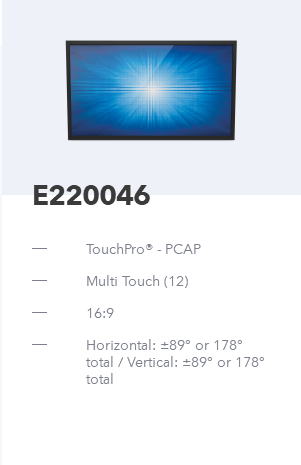

  TouchPro PCAP (Worldwide) - E220046


  Enclosure Color

  Black

  Touch Technology & Capacity

  PCAP (TouchPro® Projected Capacitive) - 12 Touch

  Touch Interface

  USB

  Diagonal Size

  54.6'' diagonal, Active matrix TFT LCD (LED)

  On Screen Display

  Accessible through switches on the OSD Control Remote accessory.

  Controls (side): Menu, Up, Down, Select

  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source, Touch, RTC

  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

  Lockouts: OSD, Power

  RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.

  See user manual for full details.

  Aspect Ratio

  16:9

  Active Area (mm)

  47.62" x 26.78" / 1209.60 mm x 680.40 mm

  Resolution

  1920 x 1080

  Other Supported Resolutions

  640 x 480 60Hz
  720 x 480 60Hz
  720 x 576 50Hz
  800 x 500 60Hz
  800 x 600 56, 60Hz
  1024 x 768 60Hz
  1280 x 720 50, 60Hz
  1280 x 960 60Hz
  1280 x 1024 60Hz
  1366 x 768 60Hz
  1440 x 900 60Hz
  1680 x 1050 60Hz
  1920 x 1080 50, 60Hz

  Viewing Angle

  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD panel: 450 nits
  TouchPro PCAP: 387 nits

  Response Time-total (typical)

  12 msec

  Contrast Ratio

  1100:1

  Input Video Signal Connector

  Analog VGA on Female DE-15 connector
  HDCP-capable HDMI on HDMI Type A receptacle connector

  Input Video Frequency

  Horizontal: 31 - 75 KHz
  Vertical: 47 - 63 Hz

  Input Voltage

  100-240 VAC, 50/60 Hz

  Input Connector

  AC: IEC 60320 C14

  Maximum Operating Time

  24 hours/day

  Power Consumption (Typical)

  Power Consumption (Typical at 120V at 60Hz):
  ON (monitor + AC/DC adapter): 85.2 W
  SLEEP (monitor + AC/DC adapter): 1.15 W
  OFF (monitor + AC/DC adapter): 0.16 W

  Power Consumption (Typical at 230V at 50Hz):
  ON (monitor + AC/DC adapter): 83.8 W
  SLEEP (monitor + AC/DC adapter): 1.42 W
  OFF (monitor + AC/DC adapter): 0.37 W

  Dimensions

  50.23" x 29.40" x 2.64" / 1276 mm x 746.8 mm x 67 mm

  Shipping Box Dimensions

  57.4" x 36.2" x 11.5" / 1458 mm x 920 mm x 292 mm

  Weight (Unpackaged)

  64.6 lbs / 29.3 kg

  Weight (Packaged)

  81.1 lbs / 36.8 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%
  Storage: 10% to 90%

  Sealability

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Warranty

  3-year

  Regulatory approvals and declarations

  Argentina S-Mark
  Australia C-Tick
  Canada CUL, IC
  China CCC
  Europe CE
  Japan VCCI
  Korea KC, KCC, e-Standby
  Mexico CoC
  Russia EAC
  Taiwan BSMI
  United States UL, FCC
  International CB
  RoHS, China RoHS, WEEE
  Energy Star 7.0
  UL 60950 ball-drop compliant
  IK07 impact compliant
  EU Energy Efficiency A+ rating

  Mounting Options

  400mm x 400mm VESA 4-hole mounting interface on rear of unit
  Side mounting brackets included with unit
  See dimensional drawings for details

  What's in the Box

  QIG
  OSD Remote
  HDMI Cable
  VGA Cable
  USB Cable (Type A to B)
  Power Cable IEC 60320-C13 (NA plug)
  Power Cable IEC 60320-C13 (EU/KR plug)
  Power Cable IEC 60320-C13 (UK plug)
  Power Cable IEC 60320-C13 (AR plug)
  Power Cable IEC 60320-C13 (CH plug)
  Power Cable IEC 60320-C13 (TW plug)
  Power Cable IEC 60320-C13 (JP plug)
  Power Cable IEC 60320-C13 (NA plug)
  3-pin to 2-pin adapter for JP power cable
  Side Mount Brackets x8
  Side Mount Bracket Screws x16

  Options / Peripherals / Upgrades

  Elo Remote OSD (RJ45) - Elo P/N: E483757
  Elo Backpack™ - Elo P/N: E611864
  Side Mount Replacement Kit - Elo P/N: E727550
  Optional PCAP Stylus Pen - Elo P/N: E066148
