elo 4243L 触摸显示器

Specifications

• ---

  Part Number(s)

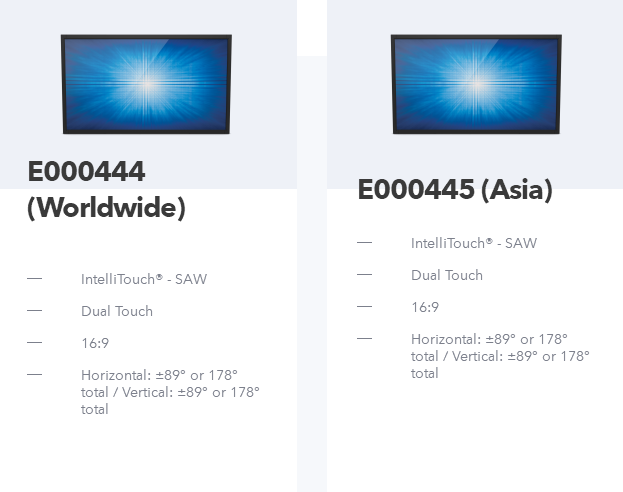

  IntelliTouch Dual Touch (Asia) - E000445
  IntelliTouch Dual Touch (Worldwide) - E000444
  Non-Touch (Worldwide) - E000447

  Enclosure Color

  Black

  Touch Technology & Capacity

  SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
  Non-Touch

  Diagonal Size

  42'' diagonal, Active matrix TFT LCD (LED)

  On Screen Display

  Accessible through switches on the OSD Control Remote accessory.

  Controls (side): Menu, Up, Down, Select

  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

  Lockouts: OSD, Power

  RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.

  See user manual for full details.

  Aspect Ratio

  16:9

  Active Area (mm)

  36.6" x 20.6" / 930mm x 523mm

  Resolution

  1920 x 1080

  Other Supported Resolutions

  640 x 480 at 60Hz
  800 x 500 at 60Hz
  800 x 600 at 56/60Hz
  1024 x 768 at 60Hz
  1280 x 720 at 60Hz
  1280 x 960 at 60 Hz
  1280 x 1024 at 60Hz
  1360 x 768 at 60 Hz
  1366 x 768 at 60 Hz
  1440 x 900 at 60 Hz
  1600 x 1200 at 60 Hz
  1680 x 1050 at 60 Hz
  1920 x 1080 at 60 Hz

  Viewing Angle

  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Number of Colors

  1073.7 million

  Brightness (typical)

  LCD panel: 500 nits
  IntelliTouch Dual Touch: 450 nits
  Non-Touch: 450 nits

  Response Time-total (typical)

  8 msec

  Contrast Ratio

  4000:1

  Input Video Format

  Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only)

  Input Video Signal Connector

  Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only)
  Female DVI-D Dual Link Connector (Asian model only)

  Input Video Frequency

  Horizontal: 31 - 80 KHz
  Vertical: 47 - 63 Hz

  Power Supply

  Internal AC

  Input Voltage

  AC: 100-240 VAC, 50/60 Hz

  Input Connector

  AC: IEC 60320 C14

  Power Consumption (Typical)

  Monitor Only
  (Typical at 110V at 60Hz):
  ON: 104 W
  SLEEP: 2.0 W
  OFF: 0.5 W

  (Typical at 230V at 50Hz):
  ON: 102.0 W
  SLEEP: 2.5 W
  OFF: 1 W

  Dimensions

  38.5" x 22.6" x 2.6" / 978mm x 575mm x 65mm

  Shipping Box Dimensions

  45.9" x 33.7" x 11.02" / 1168mm x 856mm x 280mm

  Weight (Unpackaged)

  44 lbs / 20 kg

  Weight (Packaged)

  61 lbs / 27.67 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 50°C / -4°F to 122°F

  Humidity

  Operating: 20% to 80%
  Storage: 10% to 95%

  Sealability

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Warranty

  3-year

  Regulatory approvals and declarations

  Australia RCM
  Canada cUL, IC
  China CCC
  Europe CE
  Japan VCCI
  Korea KCC e-standby
  Mexico NOM, CoC
  Taiwan BSMI
  United States UL, FCC
  International CB
  RoHS, China RoHS, WEEE
  Russia EAC

  Mounting Options

  Mounting Options 400, 400, 6mm VESA mount
  Side mounting brackets included

  What's in the Box

  QIG
  OSD Remote
  HDMI Cable
  VGA Cable
  USB Cable (Type A to B)
  Power Cable IEC 60320-C13 (NA plug)
  Power Cable IEC 60320-C13 (EU/KR plug)
  Power Cable IEC 60320-C13 (UK plug)
  Power Cable IEC 60320-C13 (AR plug)
  Power Cable IEC 60320-C13 (CH plug)
  Power Cable IEC 60320-C13 (TW plug)
  Power Cable IEC 60320-C13 (JP plug)
  Power Cable IEC 60320-C13 (NA plug)
  3-pin to 2-pin adapter for JP power cable
  Side Mount Brackets x8
  Side Mount Bracket Screws x16

  Options / Peripherals / Upgrades

  Elo Remote OSD (RJ45) - Elo P/N: E483757
  Elo Backpack™ - Elo P/N: E611864
  Replacement Cable Kit - Elo P/N: E378229
  IntelliTouch Stylus Pen - Elo P/N: D82064-000
  Replacement Bracket Kit for 3243L IT model – Elo P/N: E727550
