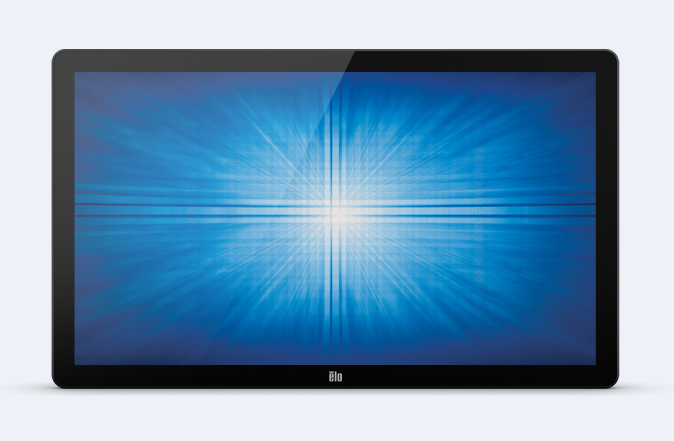

elo 3243L 触摸显示器

Specifications

• ---

  Part Number(s)

  IntelliTouch Dual Touch (Worldwide) - E326202

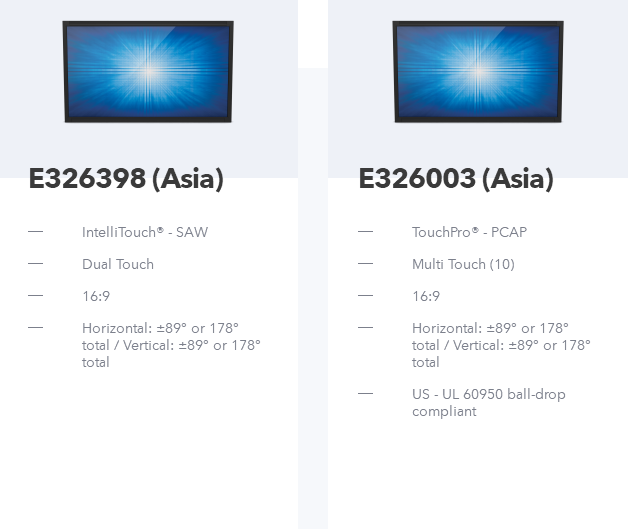

  IntelliTouch Dual Touch (Asia) - E326398
  PCAP (Worldwide) - E304029
  PCAP (Asia) - E326003

  Enclosure Color

  Black

  Touch Technology & Capacity

  SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
  PCAP (TouchPro® Projected Capacitive) - 10 Touch

  Touch Interface

  USB

  Diagonal Size

  31.5'' diagonal, Active matrix TFT LCD (LED)

  On Screen Display

  Accessible through switches on the OSD Control Remote accessory.

  Controls (side): Menu, Up, Down, Select

  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

  Lockouts: OSD, Power

  RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.

  See user manual for full details.

  Aspect Ratio

  16:9

  Active Area (mm)

  IntelliTouch Dual Touch: 27.57" x 15.54" / 700.4mm x 394.85mm
  PCAP: 27.57" x 15.54" / 700.4mm x 394.9mm

  Resolution

  1920 x 1080

  Other Supported Resolutions

  640 x 480 at 60Hz
  800 x 500 at 60Hz
  800 x 600 at 56/60Hz
  1024 x 768 at 60Hz
  1280 x 720 at 60Hz
  1280 x 960 at 60 Hz
  1280 x 1024 at 60Hz
  1360 x 768 at 60 Hz
  1366 x 768 at 60 Hz
  1440 x 900 at 60 Hz
  1600 x 1200 at 60 Hz
  1680 x 1050 at 60 Hz
  1920 x 1080 at 60 Hz

  Viewing Angle

  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD panel: 500 nits
  IntelliTouch Dual Touch: 450 nits
  PCAP: 425 nits

  Response Time-total (typical)

  8 msec

  Contrast Ratio

  3000:1

  Input Video Format

  Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only)

  Input Video Signal Connector

  Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only)
  Female DVI-D Dual Link Connector (Asian model only)

  Input Video Frequency

  Horizontal: 31 - 75 KHz
  Vertical: 47 - 63 Hz

  Power Supply

  Internal AC

  Input Voltage

  AC: 100-240 VAC, 50/60 Hz

  Input Connector

  AC: IEC 60320 C14

  Maximum Operating Time

  24 hours/day

  Power Consumption (Typical)

  Monitor + AC/DC adapter

  (Typical @ 120V at 60Hz):
  ON: IntelliTouch - 47.4W / PCAP - 47.9W
  SLEEP: IntelliTouch - 1.1W / PCAP - 0.9W
  OFF: 0.1W

  (Typical @ 230V at 50Hz):
  ON: 47.1W
  SLEEP: IntelliTouch - 1.1W / PCAP - 1.0W
  OFF: 0.1W

  Dimensions

  IntelliTouch: 29.0" x 17.4" x 2.25" / 736.4mm x 443mm x 57.2mm
  PCAP: 29.42" x 17.82" x 2.1" / 747.3mm x 452.7mm x 55mm

  Shipping Box Dimensions

  39.0" x 26.4" x 11.65" / 992mm x 672 mm x 296mm

  Weight (Unpackaged)

  IntelliTouch: 26.7 lbs / 12.1 kg
  PCAP: 24.6 lbs / 11.2 kg

  Weight (Packaged)

  IntelliTouch: 41.1 lbs / 18.6 kg
  PCAP: 39 lbs / 17.7 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%
  Storage: 10% to 90%

  Sealability

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Warranty

  3-year

  Regulatory approvals and declarations

  Argentina S-Mark
  Australia RCM
  Canada cUL, IC
  China CCC
  Europe CE
  Japan VCCI
  Korea KCC e-standby
  Mexico CoC
  Russia EAC
  Taiwan BSMI
  United States UL, FCC
  International CB
  RoHS, China RoHS, WEEE
  United States UL 60950 ball-drop compliant

  Mounting Options

  400mm x 200mm VESA 4-hole mounting interface on rear of unit
  Side mounting brackets included (with IntelliTouch Dual Touch models only)

  What's in the Box

  IntelliTouch (Worldwide) - E326202
  QIG (With Driver), Japan Kiosk Class A info, 8 pc brackets, 16 pc M4x5 screws, HDMI cable (Type A plug to Type A plug), VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), power cable - IEC 60320-C13 to - NA plug / EU/KR plug / UK plug / AR plug / CH plug / TW plug / JP plug, 3-pin to 2-pin adapter for JP power cable, Energy label according to EU Regulation 1062/2010

  IntelliTouch (Asia) - E326398
  QIG (With Driver), 8 pc brackets, 16 pc M4x5 screws, DVI-D cable (male to male), VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C13 to CH plug

  PCAP (Worldwide) – E304029
  QIG (With Driver), Japan Kiosk Class A info, HDMI cable (Type A plug to Type A plug), VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), power cable - IEC 60320-C13 to - NA plug / EU/KR plug / UK plug / AR plug / CH plug / TW plug / JP plug, 3-pin to 2-pin adapter for JP power cable, Energy label according to EU Regulation 1062/2010

  PCAP (Asia) - E326003
  QIG (With Driver), DVI-D cable (male to male), VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C13 to CH plug

  Options / Peripherals / Upgrades

  Elo Remote OSD (RJ45) - Elo P/N: E483757
  Elo Backpack™ - Elo P/N: E611864
  Replacement Cable Kit - Elo P/N: E378229
  IntelliTouch Stylus Pen - Elo P/N: D82064-000
  Replacement Bracket Kit for 3243L IT model – Elo P/N: E727550
  Flushmount Kit for PCAP 3243 - Elo P/N: E312503

  Optional PCAP Stylus Pen

  E066148
