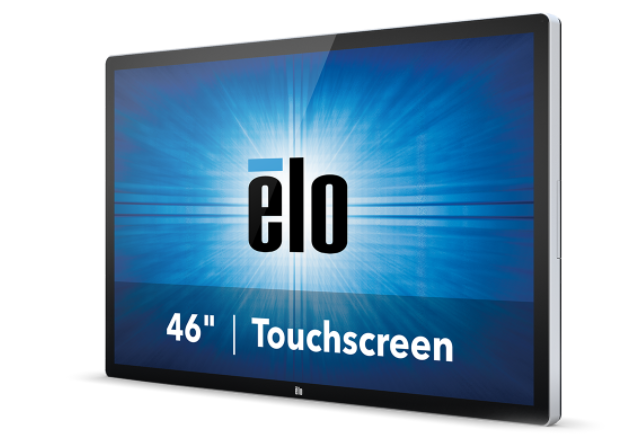

elo 4602L 触摸显示器

Specifications

• ---

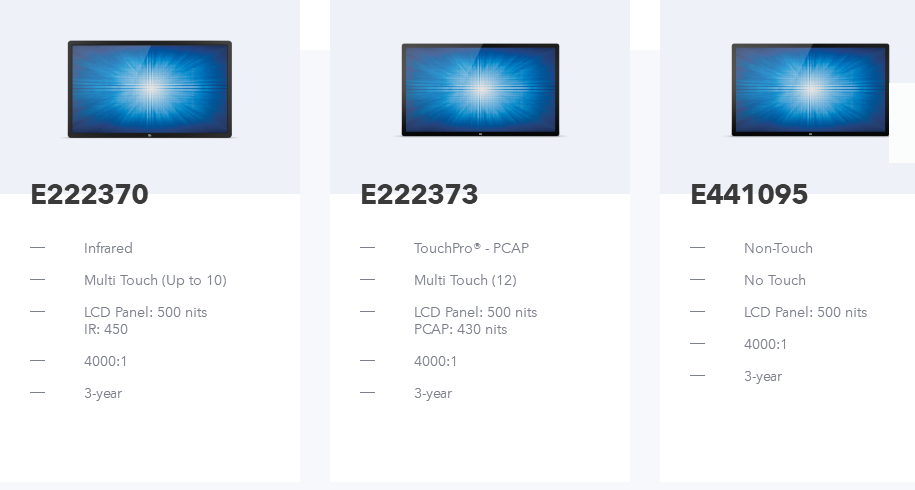

  Part Number(s)

  Infrared - E222370
  PCAP - E222373
  Non-Touch - E441095

  Enclosure Color

  Black

  Touch Technology & Capacity

  PCAP (TouchPro® Projected Capacitive) - 12 Touch
  Infrared - 10 Touch

  Touch Interfaces

  USB

  Diagonal Size

  46'' diagonal, Active matrix TFT LCD (LED)

  Active Area (mm)

  40.08" x 22.55" / 1018.08mm x 572.67mm

  Aspect Ratio

  16:9

  Resolution

  1920 x 1080 @ 60hz

  Viewing Angle

  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD Panel: 500 nits
  IR: 450
  PCAP: 430 nits

  Response Time-total (typical)

  6.5 msec

  Contrast Ratio

  4000:1

  I/O Ports

  Input: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line in
  Output: Audio Headphones out, RJ45 (for optional OSD remote)

  Input Video Frequency

  Horizontal: 31.5 - 73 KHz
  Vertical: 47 - 63 Hz

  Audio Input Connector

  3.5 mm TRS jack

  Audio Input Signal Range

  1Vrms max stereo signal (standard PC line out)

  Headphone Output Connector

  3.5 mm TRS jack

  Speakers

  4 x 5 W stereo speakers

  Power Supply

  AC internal - Replacement power cables are available with the purchase of a replacement cable kit - Elo P/N: E060080

  Input Connector

  IEC 60320 C6

  Input Voltage

  100 - 240 VAC 50/60Hz

  Maximum Operating Time

  24 hours/day

  Power Consumption (Typical)

  Monitor Only
  (Typical at 120V at 60Hz): ON: 95.0 W; SLEEP: 8.7 W; OFF: 2.5 W
  (Typical at 230V at 50Hz): ON: 96.0 W; SLEEP: 8.0 W; OFF: 2.8 W

  Dimensions

  IR & Non-Touch Model: 42.63" x 25.09" x 2.43" / 1082.8mm x 637.4mm x 61.6mm
  PCAP model: 42.63" x 25.09" x 2.02" / 1082.8mm x 637.4mm x 51.3mm

  Shipping Box Dimensions

  48.03" x 8.27" x 29.53" / 1220mm x 210mm x 750mm

  Weight (Unpackaged)

  IR & Non-Touch:
  With ECMG2: 59.19lbs / 26.85 Kg
  Without ECMG2: 52.58 lbs / 23.85 Kg
  PCAP
  With ECMG2: 59.55 lbs / 27.01 Kg
  Without ECMG2: 52.93 lbs / 24.01 Kg

  Weight (Packaged)

  IR & Non-Touch:
  Without ECMG2: 67.79 lbs / 30.75 Kg
  PCAP
  Without ECMG2: 68.10 lbs / 30.89 Kg

  Operating Temperature

  Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F
  Table top Mode and with Intel OPS modules: 0° C to 35° C OR 32°F to 95°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%
  Storage: 10% to 95%

  Mounting Options

  VESA mount per MIS-F, 400, 400, 6MM

  Sealability

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Warranty

  3-year

  Extended Warranty Options

  1 Year Extended Warranty - Elo P/N: E755062
  2 Year Extended Warranty - Elo P/N: E962188

  Optional Product Coverage

  Extended Warranty (North America and EMEA only)

  Regulatory approvals and declarations

  UL, FCC (US) - Class A
  cUL, IC (Canada)
  CB (International safety)
  CE (Europe) - Class A
  CCC (China)
  EAC (Russia)
  VCCI (Japan)

  RFID Supported Protocols

  ISO - 14443-A
  ISO - 14443-B
  ISO – 15693

  What's in the Box

  HDMI cable (Type A plug to Type A plug), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C5 to NA plug power cable, IEC 60320-C5 to EU/KR plug power cable, IEC 60320-C5 to UK plug, 3.5mm Audio Cable, Energy label according to EU Regulation

  Optional PCAP Stylus Pen

  E066148

  IDS Optional Accessories

  Barcode Reader – Elo P/N: E093433
  Elo Backpack™ - Elo P/N: E611864
  2D Barcode Scanner – Elo P/N: E926356
  Magnetic Stripe Reader – Elo P/N: E001002
  NFC/RFID Reader – Elo P/N: E001004
  Wallmount for IDS 02 Series – Elo P/N: E275050
  Webcam for IDS 02 Series – Elo P/N: E275233
  EMV Cradle for Ingenico ICMP (X-Series & IDS 02-Series) - Elo P/N: E200788
  EMV Cradle for Verifone E355 (X-Series & IDS 02-Series) - Elo P/N: E201363
  Fingerprint Reader (FPR) – Elo P/N: E001001
  ECM Power Connector Module for IDS 02 Series – Elo P/N: E275433
  Stand for IDS 02 Series - Elo P/N: E275623
  IDS Side-mount Brackets - Elo P/N: E329508
  Wired OSD Remote - Elo P/N: E483757
  ECMG2C Android Computer Module Kit for IDS 02 Series - Elo P/N: E336899
  OPS adaptor kit for IDS 02 Series - Elo P/N: E337104
  Note: All ELO-KIT-ECMG2C include the E275433 ECM Power Connector Module for IDS02
  i3-6100 ECMG3 - No OS for IDS 02 Series - Elo P/N: E400587
  i3-6100 ECMG3 - Windows 7 for IDS 02 Series - Elo P/N: E400775
  i3-6100 ECMG3 - Windows 10 for IDS 02 Series - Elo P/N: E400965
  i5-6500 ECMG3 - No OS for IDS 02 Series - Elo P/N: E401168
  i5-6500 ECMG3 - Windows 7 for IDS 02 Series - Elo P/N: E401365
  i5-6500 ECMG3 - Windows 10 for IDS 02 Series - Elo P/N: E401558
  i5-6500 ECMG3 - Windows 10 for IDS 02 Series with DisplayNote Montage Software - Elo P/N: E343989
  i7-6700 ECMG3 - No OS for IDS 02 Series - Elo P/N: E401764
  i7-6700 ECMG3 - Windows 7 for IDS 02 Series - Elo P/N: E401962
  i7-6700 ECMG3 - Windows 10 for IDS 02 Series - Elo P/N: E402161
  Note: All ECMG3 Kits include the E275433 ECM Power Connector Module for IDS02
  Replacement Cable Kit - Elo P/N: E060080
  Collaboration Tray - Elo P/N: E477238
