elo 1723L 桌面触摸显示器

Specifications

• ---

  Part Number(s)

  PCAP White (Worldwide) - E016808
  PCAP Black (Worldwide) - E683457

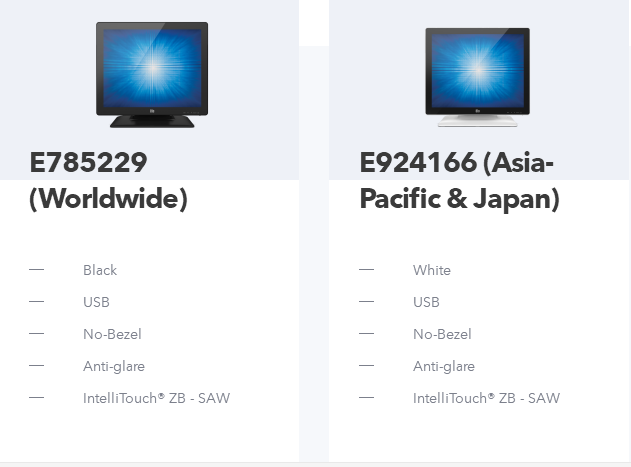

  IntelliTouch ZB Dual Touch Black (Worldwide) - E785229

  Enclosure Color

  White or Black

  Touch Technology & Capacity

  SAW ZB (IntelliTouch® Surface Acoustic Wave) - Dual Touch
  PCAP (Projected Capacitive) - 10 Touch

  Diagonal Size

  17'' diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  5:4

  Active Area (mm)

  13.3" x 10.64" / 337.92mm x 270.34mm

  Resolution

  1280 x 1024 at 75 Hz

  Other Supported Resolutions

  1280 x 1024 at 60,75 Hz
  1024 x 768 at 60,75 Hz
  800 x 600 at 60,75 Hz
  720 x 400 at 70 Hz
  640 x 480 at 60,75 Hz

  Viewing Angle

  Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD panel: 250 nits
  IntelliTouch ZB: 225 nits
  PCAP: 215 nits

  Response Time-total (typical)

  5 msec

  Contrast Ratio

  1000:1

  Input Video Format

  Analog VGA, DVI-D

  Input Video Signal Connector

  Mini D-Sub 15-Pin VGA type, DVI-D connector

  Power Supply

  AC-DC power adapter

  Input Voltage

  AC: 100-240 VAC, 50/60 Hz; DC: 12.0V ± 5%

  Input Connector

  DC: Coaxial power jack (2.1 mm outer pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

  Input Frequency

  Horizontal: 31 - 80 kHz / Vertical: 56 - 75 Hz

  Power Consumption (Typical)

  Monitor + AC/DC adapter
  ON: 19.2W
  SLEEP: 1.22W
  OFF: 0.19W

  Speakers

  Two 2W internal speakers

  USB Ports

  Two external USB ports

  On Screen Display

  Controls (side): Menu, Up, Down, Select

  Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults

  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

  Lockouts: OSD, Power

  Monitor Dimensions (with Stand)

  15.43" x 8.24" x 14.20" / 391.9mm x 209.4mm x 360.7mm

  Shipping Box Dimensions

  19.65" x 17.17" x 8.39" / 499mm x 436mm x 213mm

  Weight (Unpackaged)

  11.46 lbs / 5.2 Kg

  Weight (Packaged)

  18.7 lbs / 8.5 Kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 90%

  Sealability

  Touchscreen sealed to bezel; Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Stand Options

  Tilt, remove

  Mounting Options

  75mm VESA mount

  Other Features

  2 stage DPMS
  VESA DDC Plug and Play
  Security lock receptacle
  Internal speakers

  Warranty

  3-year

  Extended Warranty Options

  1 Year Extended Warranty - Elo P/N: 758588-000
  2 Year Extended Warranty - Elo P/N: 930057-000
  Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

  Regulatory approvals and declarations

  UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, WEEE, IMERC

  What's in the Box

  QIG, Japan Class-B TM info sheet, User Manual CD, 50W Power Brick, power cable, IEC 60320-C13 to NA/EU plug, DVI-D cable, VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), Audio cable, Stand base assembly, Filler Plate

  Replacement DC Power Supply

  The monitor may be powered with DC voltage. A optional 12V DC power brick is available at additional cost.

  United States: E005277
  Europe: E571601
  United Kingdom: E180092
  China: E558862
  Taiwan: E818655
  Japan: E182546
  Argentina: E887099

  AC Power Cable

  Power cables are included. Replacement Cable Kit: E378229

  North America: E378229
  China: E030476
  Taiwan: E637694
  Japan: E849156 (3-pin to 2-pin adapter: E351985)

  Optional PCAP Stylus Pen

  E066148

  Touch/Video/Audio/Accessory Cables:

  All appropriate cables are included and are detachable.

  Optional Peripherals

  Magnetic Stripe Reader (Black MSR) – Elo P/N: E628912

  Stands, Mounts & Kits

  1723L VESA Mount Plate (White) - Elo p/n: E000451
  1723L VESA Mount Plate (Black) - Elo p/n: E000450

  Optional Stand

  Desktop Replacement Stands
  Black: P/N - E896711
  White: P/N - E574298
